The DISC GRADE Option





The ShuttlePlex software has an optional disc grade function that can be setup to monitor a running disc and final disc evaluation.

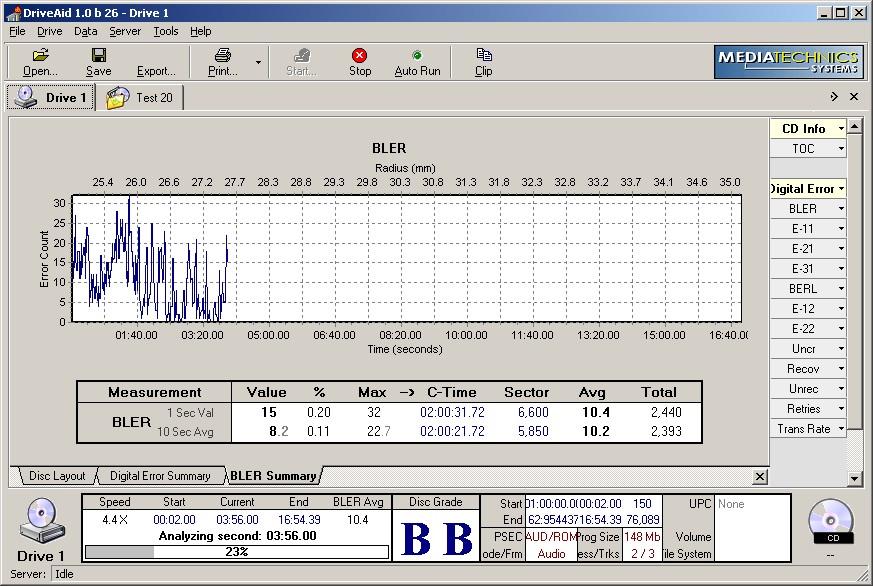

Note: the two letter B’s under the “DISC GRADE” box in the Test Status Area. The letter B to the left is the running grade. The letter B to the right is the cumulative grade.





The values for each disc type are contained in the Tools Menu at the top of the Screen. Under the Tools Menu                                        you will find the Disc Grade Parameters Option.

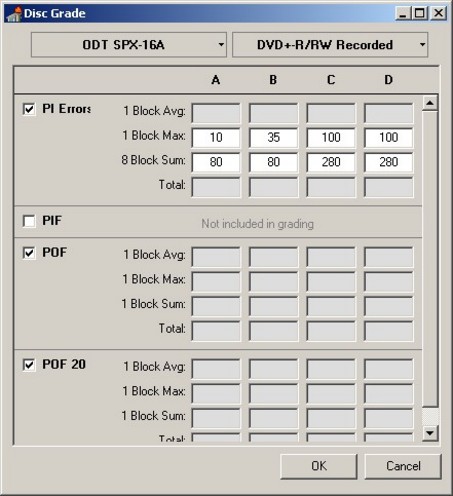

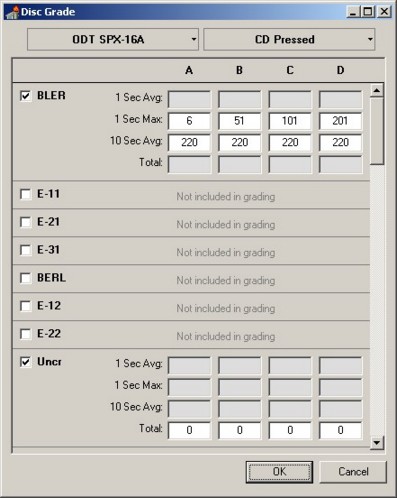

                              Sample -CD Pressed Parameters Setup                                              Sample –DVD+R/RW Parameters Setup













The Grade Parameters can be entered and utilized for 6 different disc types

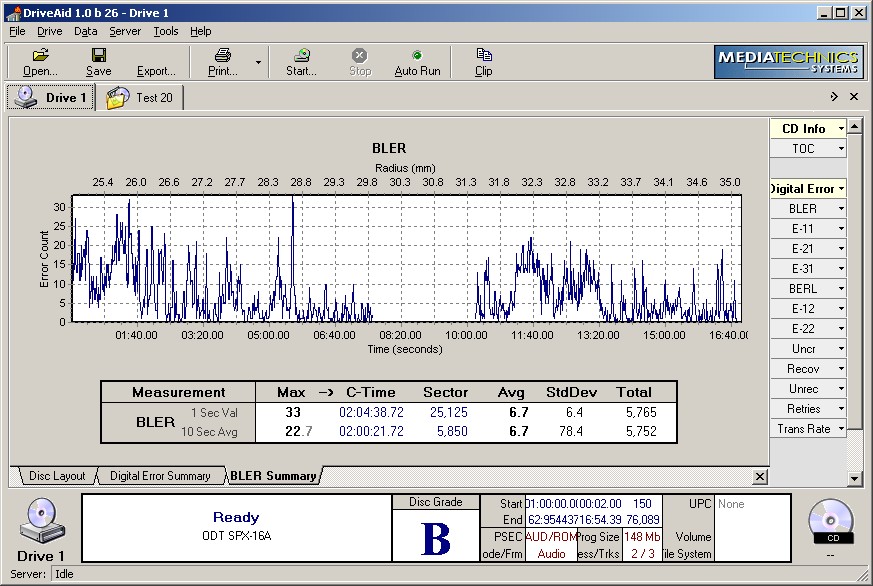

At test completion only the Cumulative Grade will be shown
