TEST SETUP and START



   To setup the testing options, start dialog, or test start- click on the ‘Start’ button at the top of the screen in the Test Operations Area.

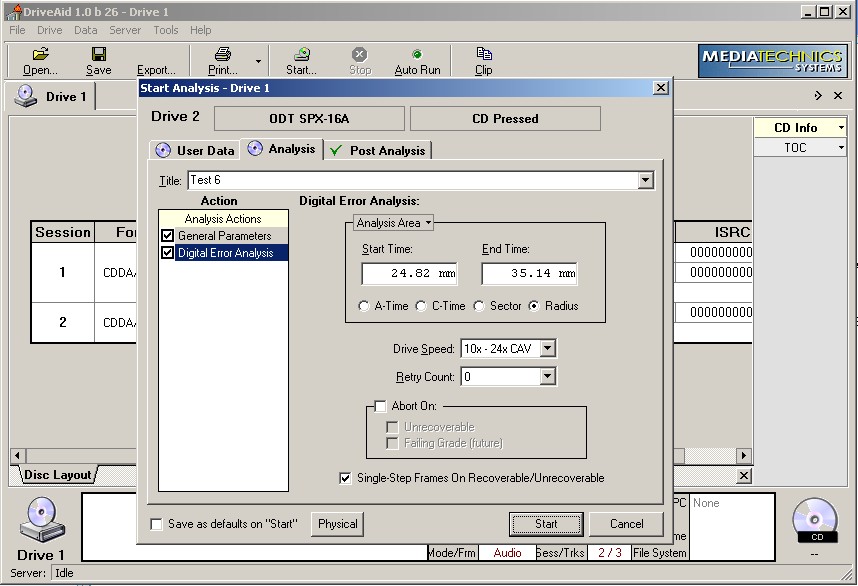

You may also use the quick start hotkey - F5 on your keyboard! A start analysis dialog screen similar to the one below should appear.







Startup Screen







Media and Drive Identifier - The Area at the top of the Start Analysis screen shows the Drive #, the Drive Model # and the Media type that has been initialized in that drive.



The format of the Start Analysis screen is determined by these three characteristics.





NOTE: There are three tabs/sub-screens in the Start Analysis Dialog and setup screen.



       USER DATA screen - far left tab above. It is used to add test title and user information to the save test file.



         ANALYSIS screen - center tab, show above. It is used to provide the test setup and running characteristics.



   POST ANALYSIS screen - far right tab. This screen is used to setup file paths and functions that will be automatically         performed after an analysis has been run.
